    Simulation Environmental Rain Test Chamber For Automobile Parts Lab Equipment

    Ask Lasest Price
    Model Number : TZ-1200
    Certification : CE Complied
    Price : Negotiation
    Payment Terms : L/C, T/T, Western Union, , MoneyGram
    Supply Ability : 500 sets/ month
    Delivery Time : 5-7 working days
    • Product Details
    • Company Profile

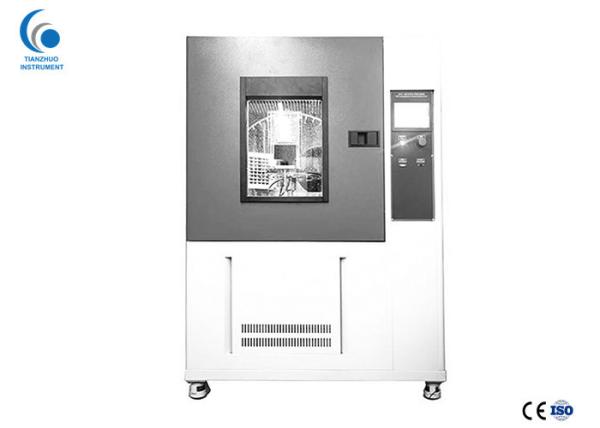

    Simulation Environmental Rain Test Chamber For Automobile Parts Lab Equipment

    Simulation Environmental Rain Test Chamber For Automobile Parts Lab Equipment


    Rain Test Chamber Description & Application
    Rain Test Chamber simulates the watet drip environment to test the water resistance and sealing of the samples during storage, transportation and usage. It is widely applied to electrical and electronic products, lamps and lanterns, electrical cabinet, electrical components, automobile, motorcycle and its spare parts and other products. It provides the basis to improve the performance of the products.
    This product uses the scientific design makes the device capable of realistic simulation drip, water spray, splashing water, environmental, water and so on. Into the overall control system and the use of inverter technology, making the rotation angle of rainfall in the test frame, spray angle and swing the pendulum swinging spray volume can automatically adjust the frequency.

    Rain Test Chamber SPECIFICATIONS


    ModelTZ-1200
    Internal dimensions (mm)1200x1200x1200
    Overall dimensions (mm)1450x1450x2000
    Oscillating tube radius600mm
    Turntable rotation speed1r/min, or steeples speed regulating (optional)
    Water pressure controlFlow meter
    Observation windowLarge viewing window with wiper
    Water supply systemStorage water tank, booster pump, Automatic water supply, Water purification system, Water saving
    Safety protection deviceElectric leakage, short circuit, motor overheating, over-current protection
    Interior materialSUS304 stainless steel
    PowerAC380V 50HZ
    Spraying hole diameterφ0.4mm
    Hole spacing50 mm
    Oscillating tube range±45°, ±60°, ±90°, ±180°(theoretical value)

    FEATURES

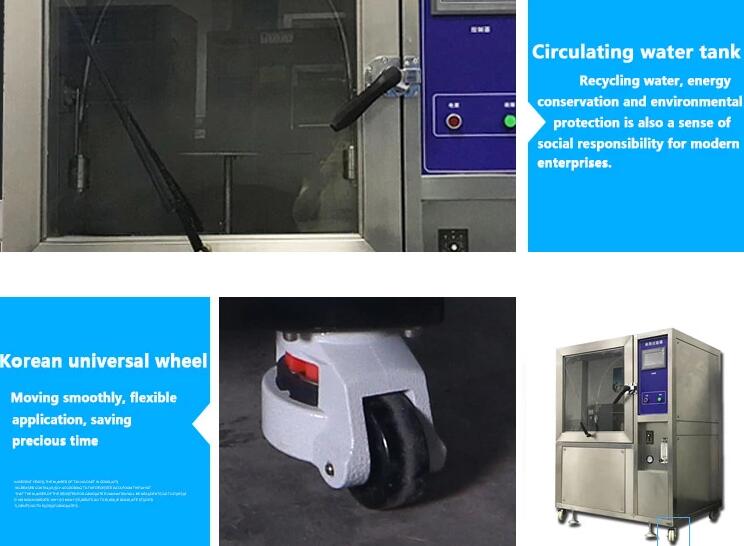

    1. The inner box of the test is equipped with LED waterproof lighting and a large observation window on the door to facilitate the observation of the test conditions in the box.
    2. The equipment has its own water tank and recycled water, so there is no need to build a professional waterproof testing room.Built-in water tank high and low water level alarm monitoring to prevent water pump damage.
    3. The shell is made of domestic high quality steel plate, the surface is sprayed with baking paint, beautiful and durable.
    4. Automatic compressed air air drying rain board, can drain the excess water in the drip box, to avoid long time water fouling and plug pinhole.
    5. The outer case of the equipment is made of high quality stainless steel, the inner case and the turntable are all made of SUS304 stainless steel, with high corrosion resistance.
