    Environmental Rain Test Chamber For Electrical Components Automobiles

    Ask Lasest Price
    Model Number : TZ-800
    Certification : CE Complied
    Price : Negotiation
    Payment Terms : L/C, T/T, Western Union, , MoneyGram
    Supply Ability : 500 sets/ month
    Delivery Time : 5-7 working days
    • Product Details
    • Company Profile

    Environmental Rain Test Chamber For Electrical Components Automobiles

    Environmental Rain Test Chamber For Electrical Components Automobiles

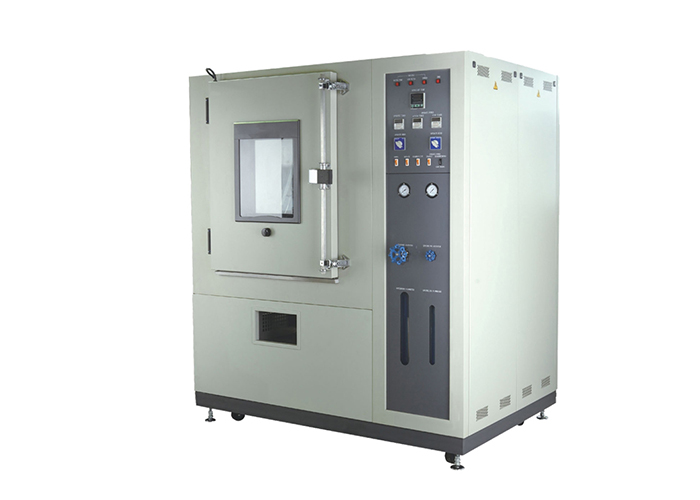

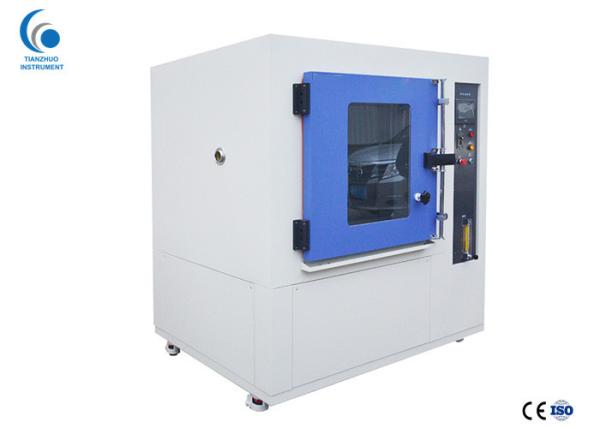

    PRODUCT INTRODUCTION


    The rain test box can provide a realistic simulation of the electronic products and their components in the transportation and use of the possible conditions such as drench and spray test. In order to detect the waterproof performance of various products.


    SPECIFICATIONS


    ModelTZ-800TZ-1200
    Internal dimensions (mm)800x800x8001200x1200x1200
    Overall dimensions (mm)1020x1360x15601450x1450x2000
    Oscillating tube radius400mm600mm
    Turntable rotation speed1r/min, or steeples speed regulating (optional)
    ControllerProgrammable color display touch screen controller, PC Link with software, R-232 interface
    Water pressure controlFlow meter
    Observation windowLarge viewing window with wiper
    Water supply systemStorage water tank, booster pump, Automatic water supply, Water purification system, Water saving
    Safety protection deviceElectric leakage, short circuit, motor overheating, over-current protection
    Interior materialSUS304 stainless steel
    PowerAC380V 50HZ
    Spraying hole diameterφ0.4mm
    Hole spacing50 mm
    Oscillating tube range±45°, ±60°, ±90°, ±180°(theoretical value)

    FEATURES


    1. The inner box of the test is equipped with LED waterproof lighting and a large observation window on the door to facilitate the observation of the test conditions in the box.
    2. The equipment has its own water tank and recycled water, so there is no need to build a professional waterproof testing room.Built-in water tank high and low water level alarm monitoring to prevent water pump damage.
    3. The shell is made of domestic high quality steel plate, the surface is sprayed with baking paint, beautiful and durable.
    4. Automatic compressed air air drying rain board, can drain the excess water in the drip box, to avoid long time water fouling and plug pinhole.
    5. The outer case of the equipment is made of high quality stainless steel, the inner case and the turntable are all made of SUS304 stainless steel, with high corrosion resistance.

    APPLICATION


    The main purpose of this equipment is to test the physical and other related properties of electronic and electrical products, lamps, electrical cabinets, electrical components, automobiles, motorcycles and their parts under the simulated weather condition of rain.After the test, through the verification to determine whether the product performance meets the requirements, in order to facilitate the product design, improvement, verification and delivery inspection use.


    PRODUCT ADVANTAGES


    1. Independent product design, production, production in strict accordance with the process requirements, beautiful appearance.

    2. The product has excellent performance and durability with reasonable price.

    3. Famous brands are adopted for key components to guarantee the performance and quality.

    4. We company established a sound quality assurance system and complete after-sales service guarantee system.

    5. Free warranty for 1 year.


    Service


    1. Pre-service

    ♦ 24 Hours online service for your consult.

    2. Middle service

    ♦ Do customer's request:

    ♦ Choose payment term you convienent.

    ♦ Promptly production and delivery,inform you in time.

    3. After sale service

    ♦ 1 year warranty service and all life maintenance.

    ♦ Technical Egineer are avalible for oversea trainning.

    ♦ Remote control technical consult
