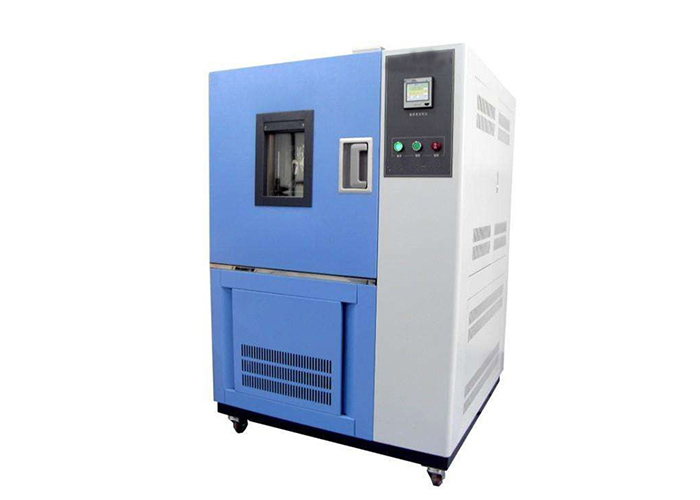

    408L Constant Temperature And Humidity Chamber / Climatic Test Chamber

    Ask Lasest Price
    Model Number : TZ-HW408
    Certification : CE Complied
    Price : Negotiation
    Payment Terms : L/C, T/T, Western Union, , MoneyGram
    Supply Ability : 500 sets/ month
    Delivery Time : 5-7 working days
    • Product Details
    • Company Profile

    408L Constant Temperature And Humidity Chamber / Climatic Test Chamber

    408L Constant Temperature And Humidity Chamber / Climatic Test Chamber


    Constant Temperature And Humidity Chamber Application :

    climate test chamber
    The High and Low temperature chamber test machine simulates different environmental condition. It's appropriate for testing material performance, such as resist heat, resist dryresist humidity and resist cold. That can define performance of material.


    Constant Temperature And Humidity Chamber Features


    1. International brand imported compressor and internationally renowned refrigeration accessories are adopted to ensure stable performance of the refrigeration system.
    2. The inner box is made of SUS304# mirror stainless steel
    3. The outer box adopts steel baking paint, which is beautiful and generous
    4. Programmable touch temperature controller.
    5. Multiple safety protection: refrigerant high pressure protection, compressor overload protection, over current protection, over temperature protection, leakage protection.
    6. Brand new and perfect modeling design, high quality appearance.Low noise design, connected to computer.




    Constant Temperature And Humidity Chamber Specification & Techincal data


    ModelTZ-HW80TZ-HW150TZ-HW225TZ-HW408TZ-HW1000
    Internal Volume(Liters)801502254081000
    DimensionStudio size(mm)400*400*500500*500*600500*600*750600*800*8501000*1000*1000
    Machine size(mm)900*902*13501005*995*14651050*1100*17001100*1350*17501500*1500*1950
    StructureCombined structure(If the door is not wide enough, small size is available , width can be reduced by 250~300mm)
    Weight(kg)Around 280Around 280Around 300Around 500Around 800
    PerformanceTest environment conditionsTest environment temperature +25°C, relative humidity≤85%, No sample in test chamber
    Corresponding standardGB/T 5170.2-1996 Method for verification of basic parameters of environmental test equipment for electric and electronic products
    Test Method

    Completely stationary test mode for the object to be measured

    This method is the first choice for testing, research and semiconductor screening of electronic components

    ParametersControl methodBalanced temperature and humidity control mode(BTHC) PID Intelligent Adjustment
    Temperature range-40°C~+150°C
    Humidity range20%~98%R.H
    Heating rate1-1.5°C/min
    Cooling rate0.7-1°C/min
    UniformityTemperature: ±1.5°C Humidity: ±2.5%R.H
    FluctuationTemperature: ±0.5°C Humidity: ±2.0%R.H
    Temperature Calibration point+23°C and +80°C


    -----Package details-----

    1. External wooden case with tray
    2. The total volume is about 3-6 square
    3. Suitable for export, loading and unloading
    Packaging details are as follows:
