    Lab Environmental Temperature Humidity Test Chamber For Climatic Simulation

    Ask Lasest Price
    Model Number : TZ-HW80
    Certification : CE Complied
    Price : Negotiation
    Payment Terms : L/C, T/T, Western Union, , MoneyGram
    Supply Ability : 500 sets/ month
    Delivery Time : 5-7 working days
    • Product Details
    • Company Profile

    Lab Environmental Temperature Humidity Test Chamber For Climatic Simulation

    Lab Environmental Temperature Humidity Test Chamber For Climatic Simulation


    Temperature Humidity Test Chamber Introduction


    The temperature and humidity test chamber can accurately simulate the complex natural environment of low temperature, high temperature, high humidity, low temperature and low humidity, which is suitable for the product detection of plastics, electronics, food, clothing, vehicles, metals, chemicals, building materials and other industries.

    Temperature Humidity Test Chamber FEATURE

    1. International brand compressor and internationally renowned refrigeration accessories are adopted to ensure stable performance of the refrigeration system.
    2. The inner box is made of SUS304# high-brightness mirror stainless steel.
    3. The outer box adopts anti-rust treatment cold-rolled steel plate (spraying), with reasonable structure and elegant appearance.
    4. Programmable touch controller
    5. Multiple safety protection: refrigerant high pressure protection, compressor overload protection, over current protection, over temperature protection, leakage protection.


    Temperature Humidity Test Chamber TECHNICAL PARAMETERS


    ModelTZ-HW80 Temperature Humidity Test Chamber
    Internal Volume(L)80L
    DimensionsStudio Size(mm)400*400*500
    Standard Machine Size(mm)900*902*1350
    Small Vertical External Size(mm)1000*750*1650
    StructureCombined structure (If the door is not wide enough, small size is available, width reduced by 250 ~ 300mm)
    Standard Weight (Kg)About 280
    PerformanceTest Environment ConditionsEnvironment temperature+25ºC,Relative humidity≤85%,No sample in test chamber.
    Corresponding Standard

    GB/T 5170.2-1996 "Method for verification of basic parameters of

    environmental test equipment for electric and electronic products"

    Test MethodCompletely stationary test mode for the object to be measured.
    This method is the first choice for testing, research and semiconductor
    screening of electronic components.
    ParametersControl MethodsBalanced temperature and humidity control mode(BTHC) PID Intelligent Adjustment
    Temperature Range-40ºC~+150ºC -70ºC~+150ºC
    Humidity Range20%~98%R.H (0%~100% R.H can be customized)
    Heating Rate1-2ºC/min (Linear Adjustment 3-5℃/min can be Customized)
    Cooling Rate0.7ºC-1ºC/min (Linear Adjustment 3-5℃/min can be Customized)
    UniformityTemperature: ±1.5ºC Humidity: ±2.5%R.H
    FluctuationTemperature: ±0.5ºC Humidity : ±2%R.H

    Temperature

    Calibration

    Point

    +23 °C and +80 °C

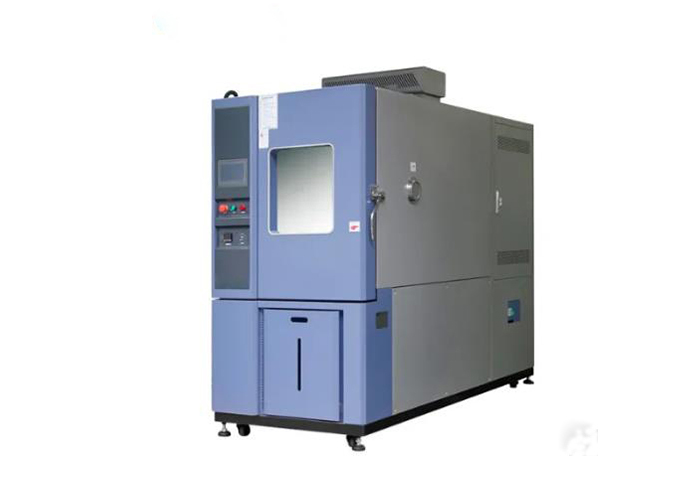

    Temperature Humidity Test Chamber PHOTOS
