    100mm / Min Packaging Testing Instruments Data Saving For Corrugated Box

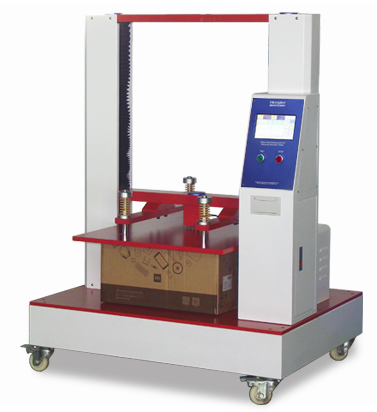

    Corrugated box compression and stacking strength tester


    APPLICATION

    Corrugated box compression and stacking strength tester is a testing machine for detecting the compressive strength and stacking strength of the carton. Simultaneously detect paper products such as small carton boxes, medium-sized cartons, large cartons, honeycomb cartons, etc.


    STANDARDS


    GB/T 4857.4,ISO 12048 ,ISO2872, ISO2874,QB/T 1048


    TECHNICAL PARAMETERS


    ItemCarton Compressive Strength Testing Machine

    Pressure Measurement

    Range

    100~50000N
    Sensor Analysis Accuracy0.3%
    Test Speed(10 ± 3) mm / min (stacking code: 5 ± 1mm / min)
    Return Speed100mm/min
    Unit InterchangeN/Lbf /kgf interchange
    Data Analysis7in touch screen, thermal printing
    Test FunctionDetermination of compressive strength, determination of stacking strength, determination of strength
    Data Saving99 groups of data can be saved at the same time
    Computer ControlIt can be equipped with computer-specific analysis software, curve detail analysis, with special programmable file management analysis report, A4 printing
    Measurement Size600*400*600mm/(800*600*800)mm
    1000*800*1000mm/(1200*1000*1200)mm
    1200*1200*1200mm/(1500*1500*1500)mm
    Other sizes can be customized according to customer requirements
