    Tensile Test Using Universal Testing Machine / Tensile Testing Equipment

    Ask Lasest Price
    Model Number : TZ-D100
    Certification : CE Complied
    Price : Negotiation
    Payment Terms : L/C, T/T, Western Union, , MoneyGram
    Supply Ability : 500 sets/ month
    Delivery Time : 5-7 working days
    • Product Details
    • Company Profile

    Tensile Test Using Universal Testing Machine / Tensile Testing Equipment

    Tensile Test Using Universal Testing Machine / Tensile Testing Equipment

    Tensile Test Using Universal Testing Machine Application:

    Tensile Test Using Universal Testing Machine is widely used in machinery, metallurgy, construction, transportation, aviation, aerospace, shipping, ceramics, automotive, pharmaceutical and electronics industries.Applied in machinery, metallurgy, construction, transportation, aviation, aerospace, shipping, ceramics, automotive, pharmaceutical and electronics industries.

    Tensile Test Using Universal Testing Machine Software Description:

    Software support: simplified Chinese, traditional Chinese, English support, 3 types: SI international standard units, kg-cm units, lb-inch British system units, 6 kinds of commonly used units: n-mm-mpa, kn-mm-mpa, gf-cm-kgf/cm2, kgg-cm-kgf /cm2, lb-inch-kpsi, kp-inch-kpsi, easy to switch units. Meet the use of different regional standards.

    Tensile Test Using Universal Testing Machine SPECIFICATIONS:

    ModelTZ-D100 Tensile Test Using Universal Testing Machine
    Power unitkgf,gf,N,kN,lbf
    Length unitmm,cm,Inch
    Stress unitMPa,kPa,kgf/cm2,lbf/in2
    Stroke resolution1/200,000
    Force accuracy±1%
    The experimental speed1—500mm/min(adjustable)
    effective travel450mm
    Test space120mm
    Stop modeOverload stop, emergency stop key, automatic stop of specimen failure, automatic stop of upper and lower limit setting, automatic reset
    outputmicrowriter
    motor driveServo motor + servo driver
    Mechanical transmissionImported synchronous wheel, synchronous belt + high precision ball screw
    The machine power200W
    The machine size(W*D*H)500mmx420mmx1150mm
    Use the power supply220V 50Hz
    The standard configurationA set of fixtures, a power cord, a manual



    Tensile Test Using Universal Testing Machine Function:

    1. The base is supplemented by aluminum alloy profile column treated by advanced plastic spraying;
    2. Adopt high precision, no gap ball screw and timely gauge belt as the guarantee of transmission system accuracy;
    3. Fully computerized data collection and motion control;
    4. Test software under the Windows XP operating system, users can use the existing functions of the software to complete the mechanical test project, or edit the test method according to their own actual needs;

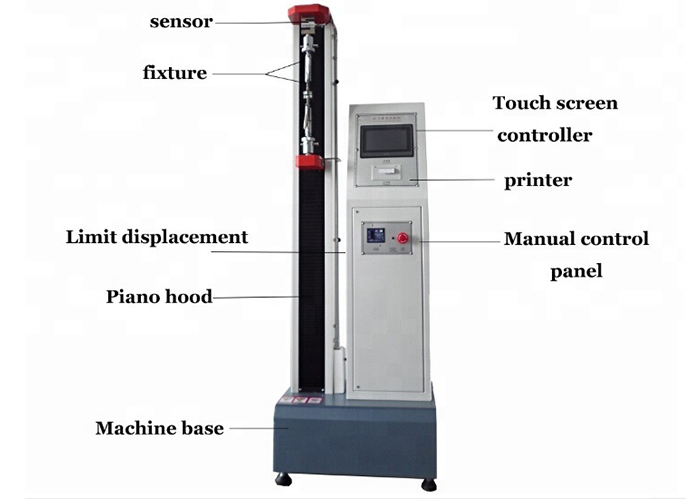

    Tensile Test Using Universal Testing Machine Details
