Wholesales Walk in Humidity Chamber Constant Temperature Equipment
(TZ-8)
Walk in Humidity Chamber FEATURE:
1. Perfect design
Arc shape and surface spraying treatment, high texture appearance,
and the use of flat non- reaction handle, easy to operate, safe and
reliable.
2. Separation of water and electricity ensures safety:
The pipeline of the humidification system is separated from the
power supply, the controller and the circuit board, so that the
leakage of the pipeline can be avoided and the circuit can be
affected and the safety can be improved.
3. The refrigeration and control system is advanced and reliable:
Original imported Europe and the United States fully closed
compressor, imported environmental refrigerant, world famous brand
of refrigeration devices, imported LCD touch screen controller,
friendly interface, easy to learn.
Walk in Humidity Chamber INTRODUCTION:
Step-in constant temperature and humidity test box is suitable for
aerospace products, information electronic instruments and meters,
materials, electronics, electronic products, various electronic
components and gas parts in high and low temperature or humid and
hot environment, testing its performance indicators.
Environmental test box can accurately simulate low temperature,
high temperature, high temperature, high humidity, low temperature
and low humidity and other complex natural environment, suitable
for plastic, electronics, food, clothing, vehicles, metals,
chemistry, building materials and other industries of product
reliability testing.
Walk in Humidity Chamber SPECIFICATIONS:
| Model | TZ-8 Walk in Humidity Chamber |
| System | Balanced temperatuer & humidity control system |
| Testing temperature range | R.T-65℃~+120℃ |
| Humidity range | 20%-95%RH |
| Temperature fluctuation | ±0.5℃ |
| Humidity fluctuation | ±2.5%RH |
| Temperature uniformity | ±2.0℃ |
| Humidity uniformity | ±5.%RH |
| Temperature deviation | ±2℃ |
| Humidity deviation | ±3%RH (≥75%) ±5%RH(<75%) |
| Heat up time | 20℃~+80℃ within 60 minutes |
| Pull down time | 20℃~-55℃,-40℃,-30℃,-20℃,-10℃ within 120 or 90 or 60 minutes. |
| Interior volume(m3) | 16.78 |
| Interior material | SUS#304 Stainless steel plate |
| Exterior material | Model steel |
| Insulation material | Rigid polyurethane foam +glass fibre |
| Floor bearing load | 500Kg/m3 |
| Refrigeration system | Air cooled (Water cooled type is option) |
| Cascade type, hermetic/semitight compressor,CFC free refrigerant |
| Controller | Color LCD screen in English/Chinese, programing,communicating
function |
| Safety devices | No welding wire switch,compressor overheating and over current
protection,over temperature protection, blower overload
protection,dry heating machine protector,low water protection,fault
warning system. |
| Power | AC380±10% 50HZ 3 phase 4 ires+ground wires |
Walk in Humidity Chamber ADVANTAGES:
1. Independent product design, production, production in strict
accordance with the process requirements, beautiful appearance.
2. The product has excellent performance and durability with
reasonable price,can be customized according to the special needs
of customers.
3. Famous brands are adopted for key components to guarantee the
performance and quality.
4. We company established a sound quality assurance system and
complete after-sales service guarantee system.

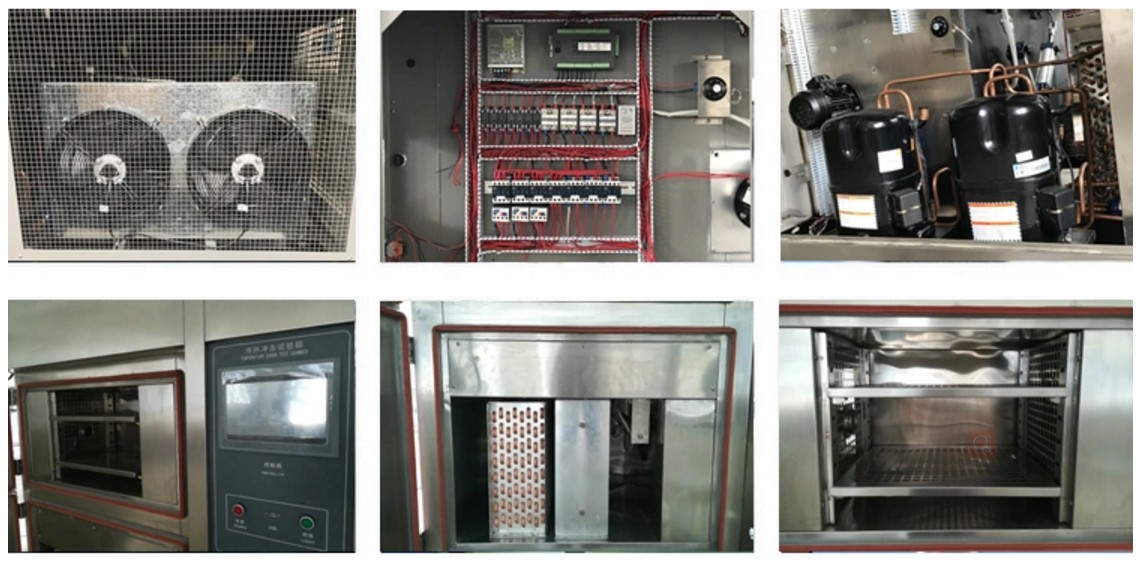

Walk in Humidity Chamber Details
