    Environmental Cooling Temperature Humidity Test Chamber Reasonable Structure

    Ask Lasest Price
    Model Number : TZ-HW225
    Certification : CE Complied
    Price : Negotiation
    Payment Terms : L/C, T/T, Western Union, , MoneyGram
    Supply Ability : 500 sets/ month
    Delivery Time : 5-7 working days
    • Product Details
    • Company Profile

    Environmental Cooling Temperature Humidity Test Chamber Reasonable Structure

    Environmental Cooling Temperature Humidity Test Chamber Reasonable Structure


    Temperature Humidity Test Chamber ADVANTAGES

    1. Independent product design, production, production in strict accordance with the process requirements, beautiful appearance.

    2. Famous brands are adopted for key components to guarantee the performance and quality.

    3. We company established a sound quality assurance system and complete after-sales service guarantee system.


    Temperature Humidity Test Chamber FEATURE

    1. International brand compressor and internationally renowned refrigeration accessories are adopted to ensure stable performance of the refrigeration system.
    2. The inner box is made of SUS304# high-brightness mirror stainless steel.
    3. The outer box adopts anti-rust treatment cold-rolled steel plate (spraying), with reasonable structure and elegant appearance.
    4. Programmable touch controller
    5. Multiple safety protection: refrigerant high pressure protection, compressor overload protection, over current protection, over temperature protection, leakage protection.
    6. Brand new and perfect modeling design, high quality appearance.Low noise design, can be connected to computer.

    Temperature Humidity Test Chamber PARAMETERS


    ModelTZ-HW225 Temperature Humidity Test Chamber
    Internal Volume(L)225L
    DimensionsStudio Size(mm)500*600*750
    Standard Machine Size(mm)1050*1100*1700
    Small Vertical External Size(mm)1200*950*1850
    StructureCombined structure (If the door is not wide enough, small size is available, width reduced by 250 ~ 300mm)
    Standard Weight (Kg)About 300
    PerformanceTest Environment ConditionsEnvironment temperature+25ºC,Relative humidity≤85%,No sample in test chamber.
    Corresponding Standard

    GB/T 5170.2-1996 "Method for verification of basic parameters of

    environmental test equipment for electric and electronic products"

    Test MethodCompletely stationary test mode for the object to be measured.
    This method is the first choice for testing, research and semiconductor
    screening of electronic components.
    ParametersControl MethodsBalanced temperature and humidity control mode(BTHC) PID Intelligent Adjustment
    Temperature Range-40ºC~+150ºC -70ºC~+150ºC
    Humidity Range20%~98%R.H (0%~100% R.H can be customized)
    Heating Rate1-2ºC/min (Linear Adjustment 3-5℃/min can be Customized)
    Cooling Rate0.7ºC-1ºC/min (Linear Adjustment 3-5℃/min can be Customized)
    UniformityTemperature: ±1.5ºC Humidity: ±2.5%R.H
    FluctuationTemperature: ±0.5ºC Humidity : ±2%R.H

    Temperature

    Calibration

    Point

    +23 °C and +80 °C

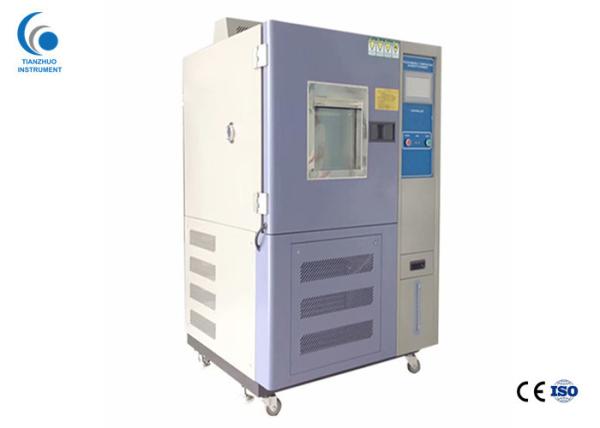

    Temperature Humidity Test Chamber PHOTOS
